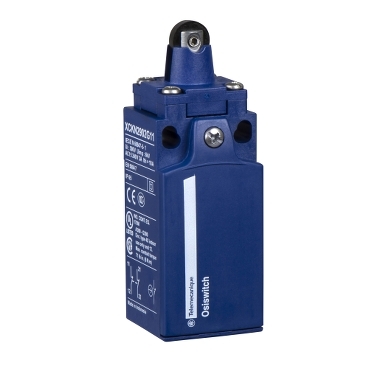

Limit switches XC Standard, XCKN, plastic roller plunger, 1NC+1 NO, snap, M20.
Specifications | XCKN2102P20 |
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCKN |
| Sensor design | Compact form C |
| Body type | Fixed |
| Head type | Plunger head |
| Material | Plastic |
| Body material | Plastic |
| Head material | Plastic |
| Fixing mode | By the body |
| Movement of operating head | Linea |
| Type of operator | Spring return roller plunger plastic |
| Type of approach | Lateral approach, 2 directions |
| Cable entry number | 1 entry tapped for M20 x 1.5 cable gland 0.3…0.5 in (7…13 mm) |
| Number of poles | 2 |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Snap action |
| Switch actuation | By 30° cam |
| Electrical connection | Screw-clamp terminals 1 x 0.34...2 x 1.5 mm² |
| Contacts insulation form | Zb |
| Positive opening | With |
| Mechanical durability | 10000000 cycles |
| Depth | 30 mm |
| Height | 85 mm |
| Width | 30 mm |
| Net Weight | 0.145 kg |
