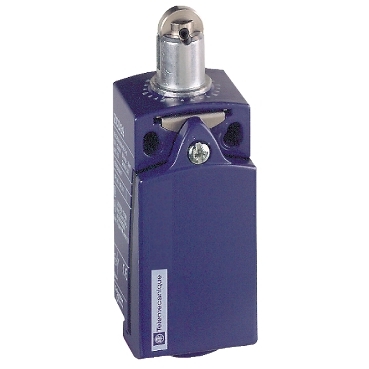

Limit switches XC Standard, XCKD, cat's whisker, 1NC+1 NO, snap, M16.
Specifications | XCKD2106P16 |
| Range of product | Telemecanique Limit switches XC Standard |
| Product or component type | Limit switch |
| Device short name | XCKD |
| Sensor design | Compact |
| Body type | Fixed |
| Head type | Multi-directional head |
| Material | Metal |
| Body material | Zamak |
| Head material | Zamak |
| Fixing mode | By the body |
| Movement of operating head | Multi-directional |
| Type of operator | Spring return cat''s whisker |
| Type of approach | Multi-directional approach |
| Number of poles | 2 |
| Contacts type and composition | 1 NC + 1 NO |
| Terminals description ISO n°1 | (21-22)NC
(13-14)NO |
| Contact operation | Snap action |
| Switch actuation | By any moving part |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| Cable entry | 1 entry tapped for M16 x 1.5 cable gland, cable outer diameter: 4…8 mm |
| Positive opening | Without |
| Repeat accuracy | 0.1 mm on the tripping points with 1 million operating cycles |
| [Ui] rated insulation voltage | 300 V conforming to UL 508
500 V (pollution degree 3) conforming to IEC 60947-1
300 V conforming to CSA C22.2 No 14 |
| Depth | 30 mm |
| Height | 65 mm |
| Width | 31 mm |
| Net Weight | 0.175 kg |
