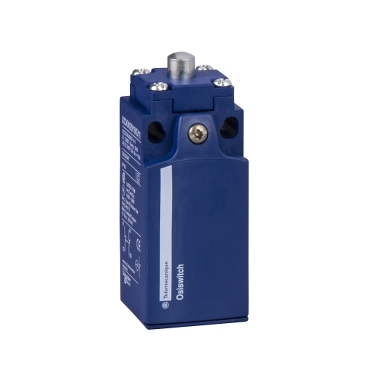

Limit switches XC Standard, XCKN, metal end plunger, 1NC+1 NO, snap, M20.
Specifications | XCKN2110P20 |
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCKN |
| Sensor design | Compact form B |
| Body type | Fixed |
| Head type | Plunger head |
| Material | Plastic |
| Body material | Plastic |
| Head material | Plastic |
| Fixing mode | By the body |
| Movement of operating head | Linear |
| Type of operator | Spring return plunger metal |
| Type of approach | Vertical approach, 1 direction |
| Cable entry number | 1 entry tapped for M20 x 1.5 cable gland, cable outer diameter: 7…13 mm. |
| Number of poles | 2 |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Snap action |
| Switch actuation | On end |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 1.5 mm² |
| Contacts insulation form | Zb |
| Positive opening | With |
| Mechanical durability | 10000000 cycles |
| Depth | 30 mm |
| Height | 75 mm |
| Width | 30 mm |
| Net Weight | 0.135 kg |
