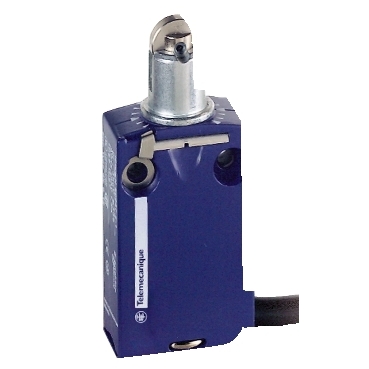

Limit switches XC Standard, XCMD, steel roller plunger, 1NC+1 NO, snap, 1 m.
Specifications | XCMD2102L1 |
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCMD |
| Sensor design | Miniature |
| Body type | Fixed |
| Head type | Plunger head |
| Material | Metal |
| Body material | Zamak |
| Head material | Zamak |
| Fixing mode | By the body |
| Movement of operating head | Linear |
| Type of operator | Spring return roller plunger metal |
| Type of approach | Lateral approach, 2 directions |
| Number of poles | 2 |
| Contacts type and composition | 1 NC + 1 NO |
| Contact operation | Snap action |
| Switch actuation | By 30° cam |
| Electrical connection | Removable cable connector |
| Cable length | 3.3 ft (1 m) |
| Cable composition | 5 x 0.75 mm² |
| Contacts insulation form | Zb |
| Positive opening | With |
| Mechanical durability | 10000000 cycles |
| Depth | 16 mm |
| Height | 50 mm |
| Width | 30 mm |
| Net Weight | 0.185 kg |
