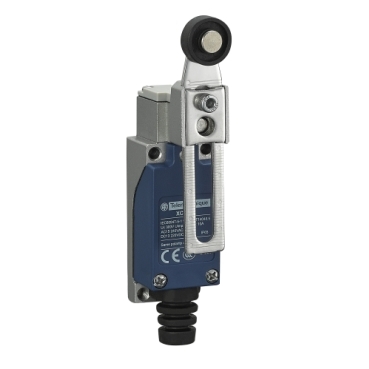

Variable length thermoplastic roller lever.
Specifications | XCE145C |
| Range of product | OsiSense XC |
| Series name | Basic |
| Product or component type | Limit switch |
| Product specific application | Medium duty |
| Device short name | XCE |
| Body type | Fixed |
| Head type | Rotary head |
| Material | Plastic and metal |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| Type of operator | Spring return roller lever thermoplastic variable length |
| Switch actuation | By 30° cam |
| Type of approach | Lateral approach, 2 directions |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 1.5 mm² |
| Cable entry | 1 flexible rubber cable gland, cable outer diameter: 6…9 mm |
| Number of poles | 2 |
| Contact operation | Snap action |
| Contacts material | Silver plated contacts |
| Positive opening | Without |
| Mechanical durability | 10000000 cycles |
| Depth | 48 mm |
| Height | 125 mm |
| Width | 28 mm |
| Net Weight | 0.175 kg |
