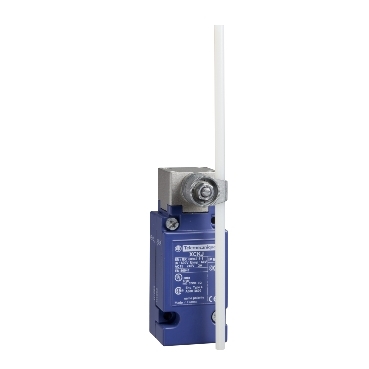

Limit switch, XC Standard, XCKJ, thermoplastic round rod lever 6 mm, 1C/O, snap, M20.
Specifications | XCKJ110559H29 |
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCKJ |
| Sensor design | Form D CENELEC EN 50041 |
| Body type | Plug-in body |
| Head type | Rotary head |
| Material | Metal |
| Body material | Zamak |
| Head material | Zamak |
| Fixing mode | By the body |
| Movement of operating head | Rotary |
| Type of operator | Spring return round rod lever thermoplastic round rod 6 mm, L = 200 mm |
| Type of approach | Lateral approach, 1 or 2 programmable direction |
| Cable entry | 1 entry tapped for M20 x 1.5 cable gland 0.3…0.5 in (7…13 mm) |
| Number of poles | 1 |
| Contacts type and composition | 1 C/O |
| Contact operation | Snap action |
| Switch actuation | By any moving part |
| Electrical connection | Screw-clamp terminals 1 x 0.75...2 x 1.5 mm² |
| Contacts insulation form | Za |
| Number of steps | 1 |
| Positive opening | Without |
| [Ie] rated operational current | 3 A at 240 V, AC-15, A300 conforming to IEC 60947-5-1 appendix A
0.27 A at 250 V, DC-13, Q300 conforming to IEC 60947-5-1 appendix A |
| Mechanical durability | 30000000 cycles |
| Depth | 36 mm |
| Height | 84 mm |
| Width | 43 mm |
| Net Weight | 0.485 kg |
