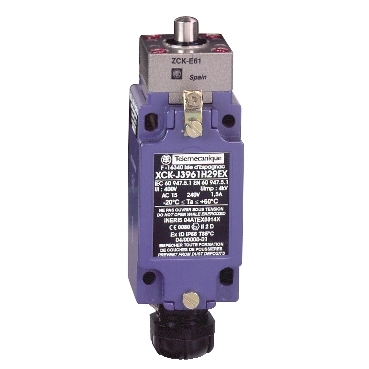

Limit switch, Limit switches XC Standard,XCKJ, plunger, 2NC + NO, ATEX/IECEx.
Specifications | XCKJ3961H29EX |
| Range of product | Telemecanique Limit switches XC Standard |
| Series name | Standard format |
| Product or component type | Limit switch |
| Device short name | XCKJ |
| Sensor design | Form B conforming to CENELEC EN 50041 |
| Body type | Fixed |
| Head type | Plunger head |
| Material | Metal |
| Body material | Zamak |
| Head material | Zamak |
| Fixing mode | By the body |
| Movement of operating head | Linear |
| Type of operator | Spring return plunger metal |
| Type of approach | Vertical approach, 1 direction |
| Cable entry number | 1 tapped entry for M20 x 1.5 cable gland (included) 9…12 mm |
| Number of poles | 3 |
| Contacts type and composition | 2 NC + 1 NO |
| Contact operation | Snap action |
| Switch actuation | On end |
| Electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.34...2 x 0.75 mm² |
| Contacts insulation form | Zb |
| Number of steps | 1 |
| Positive opening | With |
| [Ie] rated operational current | 3 A 240 V, AC-15, A300 IEC 60947-5-1 appendix A
0.27 A 250 V, DC-13, Q300 IEC 60947-5-1 appendix A |
| Mechanical durability | 30000000 cycles |
| Depth | 44 mm |
| Height | 77 mm |
| Width | 40 mm |
| Net Weight | 0.455 kg |
