Specifications | A8402S_WE_G19 |
| Range of product | ZENcelo A (Dòng công tắc ổ cắm ZENcelo A chữ nhật) |
| Country of Origin (Estimated) | Vietnam (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |

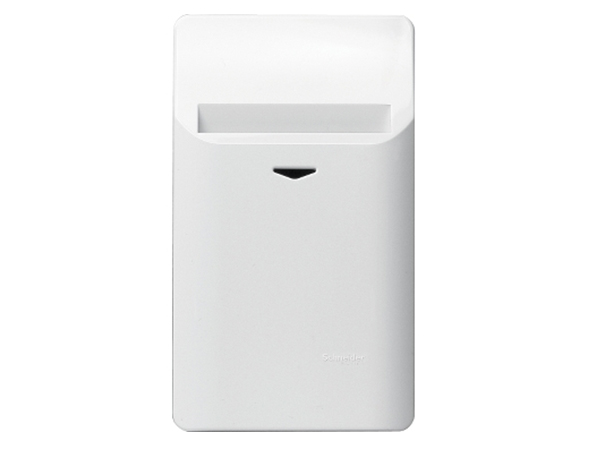

| Product or component type | Key card switch (Thẻ Từ) |
| Rated current | 16 A at 240 V AC |
| Colour tint | White |
| Status LED | LED |
| Material | Polycarbonate: base
Polycarbonate: grid plate
Polycarbonate: surround
Polycarbonate: lenses |
| Load type | Incandescent 16 A
Fluorescent 8 AX
Motor 8 A |
| Device mounting | Surface
Flush |
| Connections - terminals | Brass terminal |
| Clamping connection capacity | 1 x 1...4 x 1 mm² for solid stranded cable(s)
2 x 2.5 mm² for solid stranded cable(s)
1 x 1.5...3 x 1.5 mm² for solid stranded cable(s) |
| Standards | IEC 60669-2-1 |
| IP degree of protection | IP20 |
| Width | 70 mm |
| Height | 120 mm |
| Depth | 40.7 mm |
