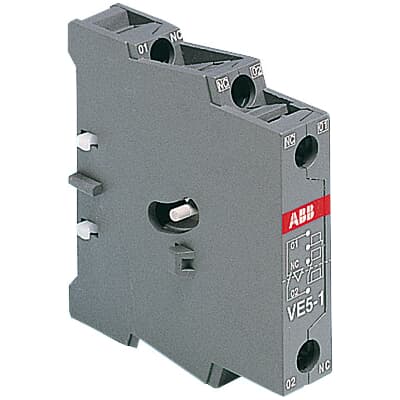

Mechanical and electrical interlock units for two horizontal mounted contactors Suitable For 2NC AX09-AX40 (VE5-1).
Specifications | 1SBN030110R1000 |
| Range | Mechanic interlock contact block |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | VE5-1 |
| Description | VE5-1 Mechanical and Electrical Interlock Unit |
| Number of Auxiliary Contacts | 2NC |
| Rated Operational Voltage | Auxiliary Circuit 690 V |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A
(690 V) 2 A
(24 / 127 V) 6 A
(220 / 240 V) 4 A
(380 / 400 V) 3 A |
| Mechanical Durability | 5 million |
| Standards | IEC/EN 60947-4-1, UL 60947-1, UL 60947-5-1, CSA C22.2 No. 60947-1-13, CSA C22.2 No. 60947-5-1-14 |
| Suitable For Contactor | A9, A12, A16, A26, A30, A40, AL9, AL9Z, AL12, AL12Z
AL16, AL16Z, AL26, AL30, AL40, TAL9, TAL12, TAL16
TAL26, TAL30, TAL40, AX06, AX09, AX12, AX18, AX25
AX32, AX40 |
Dimensions (mm)
(HxWxD) | 70 x 15 x 71mm |
| Net weight (Kg) | 0.066 kg |
