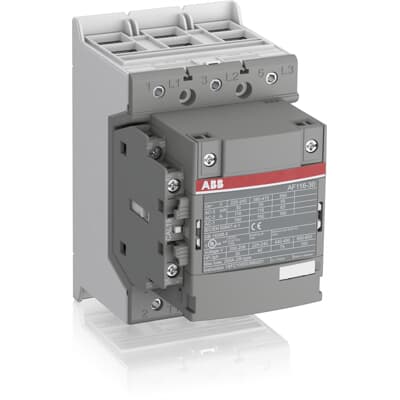

Contactor 3-phase 140A Auxiliary Contacts 1NO+1NC Control Circuit Voltage 100-250VAC/DC (AF116-30-13-13)
Specifications | 1SFL427001R1311 |
| Range | Contactor AF |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | AF116-30-11-13 |
| Device application | Power switching
Motor control |
| Number of Main Contacts NO | 3P |
| Number of Auxiliary Contacts | 1NO+1NC |
| Rated Operational Voltage | Main Circuit 690 V |
| Conventional Free-air Thermal Current | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 160 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 160 A
(690 V) 60 °C 145 A
(690 V) 70 °C 130 A |
| Rated Operational Current AC-3 | (415 V) 55 °C 116 A
(440 V) 55 °C 116 A
(500 V) 55 °C 110 A
(690 V) 55 °C 65 A
(380 / 400 V) 55 °C 116 A
(220 / 230 / 240 V) 55 °C 116 A |
| Rated Operational Power AC-3 (Pe) | (415 V) 55 kW
(440 V) 75 kW
(500 V) 75 kW
(690 V) 55 kW
(380 / 400 V) 55 kW
(220 / 230 / 240 V) 30 kW |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 1000 V
acc. to UL/CSA 600 V |
| Rated Control Circuit Voltage (Uc) | 50 Hz 100 ... 250 V
60 Hz 100 ... 250 V
DC Operation 100 ... 250 V |
| Maximum Mechanical Switching Frequency | 300 cycles per hour |
| Terminal Type | Double Clamp |
Dimensions (mm)
(HxWxD) | 150 x 90 x 126 mm |
| Net weight (Kg) | 1.55 kg |
