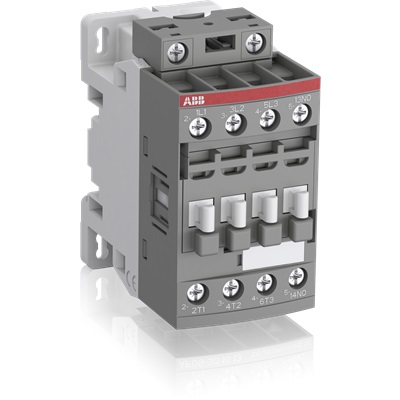

Contactor 3-phase 18A Auxiliary Contacts 1NO Control Circuit Voltage 48-130VAC/DC (AF16-30-10-12)
Specifications | 1SBL177001R1210 |
| Range | Contactor AF |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | AF16-30-10-12 |
| Device application | Power switching
Motor control |
| Poles description | 3P |
| Number of Auxiliary Contacts | 1NO |
| Rated Operational Voltage | Auxiliary Circuit 690 V
Main Circuit 690 V |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1 |
| Conventional Free-air Thermal Current | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 35 A
acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 30 A
(690 V) 60 °C 30 A
(690 V) 70 °C 26 A |
| Rated Operational Current AC-3 | (415 V) 60 °C 18 A
(440 V) 60 °C 18 A
(500 V) 60 °C 15 A
(690 V) 60 °C 10.5 A
(380 / 400 V) 60 °C 18 A
(220 / 230 / 240 V) 60 °C 18 A |
| Rated Operational Power AC-3 (Pe) | (400 V) 7.5 kW
(415 V) 9 kW
(440 V) 9 kW
(500 V) 9 kW
(690 V) 9 kW
(380 / 400 V) 7.5 kW
(220 / 230 / 240 V) 4 kW |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 690 V
acc. to IEC 60947-5-1 690 V
acc. to UL/CSA 600 V |
| Rated Control Circuit Voltage (Uc) | 50 Hz 48 ... 130 V
60 Hz 48 ... 130 V
DC Operation 48 ... 130 V |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Screw Terminal Type | Screw Terminals |
Dimensions (mm)
(HxWxD) | 86 x 45 x 77 mm |
| Net weight (Kg) | 0.27 kg |
