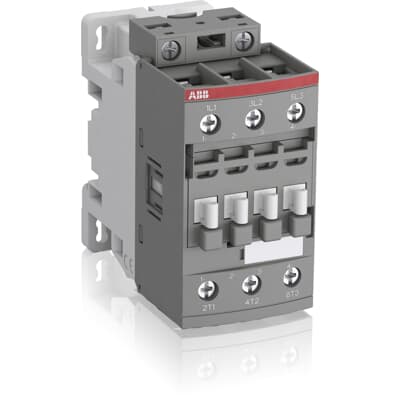

Contactor 3-phase 26A Control Circuit Voltage 100-250VAC/DC (AF26-30-00-13)
Specifications | 1SBL237001R1300 |
| Range | Contactor AF |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | AF26-30-00-13 |
| Device application | Power switching
Motor control |
| Poles description | 3P |
| Number of Auxiliary Contacts | 0 |
| Rated Operational Voltage | Main Circuit 690 V |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1, UL 60335-2-40 LZGH2 A2L, UL 60947-4-1, CSA C22.2 No. 60335-2-40 LZGH2 A2L, CSA C22.2 No. 60947-4-1 |
| Conventional Free-air Thermal Current | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 50 A |
| Rated Operational Current AC-1 (Ie) | (690 V) 40 °C 45 A
(690 V) 60 °C 40 A
(690 V) 70 °C 32 A |
| Rated Operational Current AC-3 | (415 V) 60 °C 26 A
(440 V) 60 °C 26 A
(500 V) 60 °C 23 A
(690 V) 60 °C 17 A
(380 / 400 V) 60 °C 26 A
(220 / 230 / 240 V) 60 °C 26 A |
| Rated Operational Power AC-3 (Pe) | (400 V) 11 kW
(415 V) 11 kW
(440 V) 15 kW
(500 V) 15 kW
(690 V) 15 kW
(380 / 400 V) 11 kW
(220 / 230 / 240 V) 6.5 kW |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 690 V
acc. to IEC 60947-5-1 690 V
acc. to UL/CSA 600 V |
| Rated Control Circuit Voltage (Uc) | 50 Hz 100 ... 250 V
60 Hz 100 ... 250 V
DC Operation 100 ... 250 V |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
| Screw Terminal Type | Screw Terminals |
Dimensions (mm)
(HxWxD) | 86 x 45 x 86 mm |
| Net weight (Kg) | 0.31 kg |
