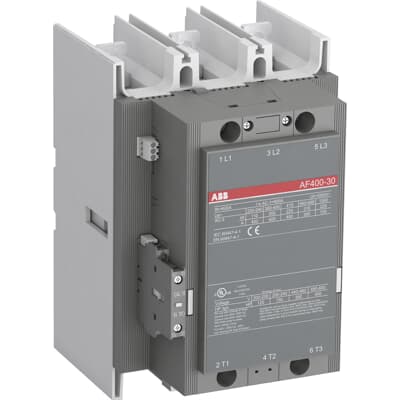

Contactor 3-phase 400A Auxiliary Contacts 1NO+1NC Control Circuit Voltage 48-130VAC/DC (AF400-30-11)
Specifications | 1SFL577001R6911 |
| Range | Contactor AF |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | AF400-30-11-69 |
| Device application | Power switching
Motor control |
| Number of Main Contacts NO | 3P |
| Number of Auxiliary Contacts | 1NO+1NC |
| Rated Operational Voltage | Main Circuit 1000 V |
| Conventional Free-air Thermal Current | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 600 A |
| Rated Operational Current AC-1 (Ie) | (1000 V) 40 °C 600 A
(1000 V) 55 °C 500 A
(1000 V) 70 °C 400 A
(690 V) 40 °C 600 A
(690 V) 55 °C 500 A
(690 V) 70 °C 400 A |
| Rated Operational Current AC-3 | (415 V) 55 °C 400 A
(440 V) 55 °C 400 A
(500 V) 55 °C 400 A
(690 V) 55 °C 350 A
(1000 V) 55 °C 155 A
(380 / 400 V) 55 °C 400 A
(220 / 230 / 240 V) 55 °C 400 A |
| Rated Operational Power AC-3 (Pe) | (415 V) 220 kW
(440 V) 220 kW
(500 V) 250 kW
(690 V) 315 kW
(1000 V) 220 kW
(380 / 400 V) 200 kW
(220 / 230 / 240 V) 110 kW |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 1000 V
acc. to UL/CSA 600 V |
| Rated Control Circuit Voltage (Uc) | 50 Hz 48 ... 130 V
60 Hz 48 ... 130 V
DC Operation 48 ... 130 V |
| Maximum Mechanical Switching Frequency | 300 cycles per hour |
| Terminal Type | Main Circuit: Bars |
Dimensions (mm)
(HxWxD) | 278 x 186 x 216 mm |
| Net weight (Kg) | 10.6 kg |
