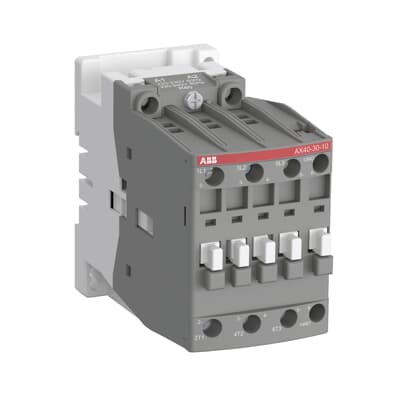

Công tắc tơ ABB chính hãng, COCQ đầy đủ, bảo hành 12 tháng.
Specifications | 1SBL281074R8410 |
| Range | Contactor AX |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Extended Product Type | AX32-30-10-84 |
| Device application | Power switching
Motor control |
| Poles description | 3P |
| Number of Auxiliary Contacts | 1NO |
| Rated Operational Voltage | |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 65 A
acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Operational Current AC-1 (Ie) | (220 / 240 V) 55 °C 55 A
(690 V) 40 °C 55 A
(690 V) 70 °C 39 A |
| Rated Operational Current AC-3 (Ie) | (415 V) 55 °C 32 A
(440 V) 55 °C 32 A
(500 V) 55 °C 28 A
(690 V) 55 °C 21 A
(380 / 400 V) 55 °C 32 A
(220 / 230 / 240 V) 55 °C 32 A |
| Rated Operational Power AC-3 (Pe) | (415 V) 15 kW
(440 V) 18.5 kW
(500 V) 18.5 kW
(690 V) 18.5 kW
(380 / 400 V) 15 kW
(220 / 230 / 240 V) 9 kW |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 and VDE 0110 (Gr. C) 690 V |
| Rated Control Circuit Voltage (Uc) | 50 Hz 110 V
60 Hz 110 ... 120 V |
| Maximum Mechanical Switching Frequency | 3600 cycles per hour |
Dimensions (mm)
(HxWxD) | 108.3x54x90 mm |
| Net weight (Kg) | 0.667 kg |
