Specifications | 1SBL241022R8010 |
| Extended Product Type | UA26-30-10 220-230V 50Hz / 230-240V 60Hz |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Contactors For Capacitor |

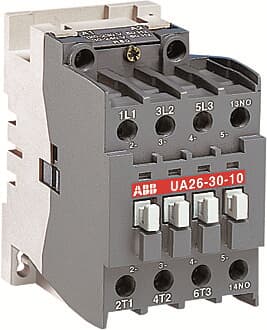

| Catalog Description | UA26-30-10 220-230V 50Hz / 230-240V 60Hz Contactor |
| Number of Main 3 Contacts NO | 3 |
| Number of Main Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 1 |
| Number of Auxiliary Contacts NC | 0 |
| Number of Poles | 3P |
| Rated Operational Voltage | Auxiliary Circuit 690 V
Main Circuit 690 V |
| Conventional Free-air Thermal Current (Ith) | acc. to IEC 60947-5-1, Θ = 40 °C 16 A |
| Rated Operational Current AC-15 (Ie) | (500 V) 2 A
(690 V) 2 A
(24 / 127 V) 6 A
(220 / 240 V) 4 A
(380 / 400 V) 3 A |
| Rated Operational Current DC-13 (Ie) | (24 V) 6 A / 144 W
(48 V) 2.8 A / 134 W
(72 V) 2 / 144 W
(110 V) 1.1 A / 121 W
(125 V) 1.1 / 138 W
(220 V) 0.55 A / 121 W
(250 V) 0.55 / 138 W |
| Rated Operational Power AC-6b (Pe) | (230 / 240 V) 40 °C, 50 / 60 Hz 12 kvar
(230 / 240 V) 55 °C, 50 / 60 Hz 11 kvar
(230 / 240 V) 70 °C, 50 / 60 Hz 8.5 kvar
(400 / 415 V) 40 °C, 50 / 60 Hz 20 kvar
(400 / 415 V) 70 °C, 50 / 60 Hz 14.5 kvar
(400 / 415 V) 55 °C, 50 / 60 Hz 18.5 kvar
(440 V) 40 °C, 50 / 60 Hz 22 kvar
(440 V) 55 °C, 50 / 60 Hz 20 kvar
(440 V) 70 °C, 50 / 60 Hz 16 kvar
(500 / 550 V), 40 °C, 50 / 60 Hz 22 kvar
(500 / 550 V) 55 °C, 50 / 60 Hz 22 kvar
(500 / 550 V) 70 °C, 50 / 60 Hz 19.5 kvar
(690 V) 40 °C, 50 / 60 Hz 30 kvar
(690 V) 55 °C, 50 / 60 Hz 30 kvar
(690 V) 70 °C, 50 / 60 Hz 25 kvar |
| Maximum Breaking Capacity | cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 420 A
cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 170 A |
| Rated Insulation Voltage (Ui) | acc. to IEC 60947-4-1 1000 V
acc. to IEC 60947-5-1 690 V
acc. to UL/CSA 600 V |
| Mechanical Durability | 10 million |
| Maximum Mechanical | 3600 cycles per hour |
| Rated Control Circuit Voltage (Uc) | 50 Hz 220 ... 230 V
60 Hz 230 ... 240 V |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Terminal Type | Screw Terminals |
| Tightening Torque | Auxiliary Circuit 1 N·m
Control Circuit 1 N·m
Main Circuit 1 N·m |
| Standards | IEC/EN 60947-1, IEC/EN 60947-4-1 |
| Dimensions (WxHxD) | 54 x 90 x 93.6 mm |
| Net weight | 0.6 Kg |
