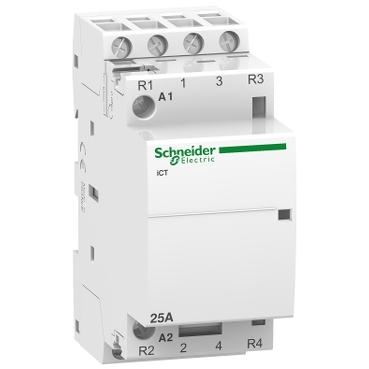

Contactor iCT - 4 poles - 2NO+2NC - 25A - 220..240 VAC.
| Specifications |
| Range | Contactor Acti9 iCT |
| Country of Origin (Estimated) | France (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | Acti9 iCT |
| Device application | Motor-heating-lighting |
| Poles description | 4P |
| [Ie] rated operational current | 25 A AC-7A |
| Pole contact composition | 2 NO + 2 NC |
| Control type | Remote control |
| [Uc] control circuit voltage | 220...240 V AC 50 Hz |
| [Ue] rated operational voltage | 250 V AC 50 Hz |
| Mechanical durability | 1000000 cycles |
| Electrical durabili | 100000 cycles IEC/EN 61095 25 A 50 Hz AC-7A
30000 cycles IEC/EN 61095 8.5 A 50 Hz AC-7B |
Dimensions (mm)
(HxWxD) | 81x36x60 mm |
