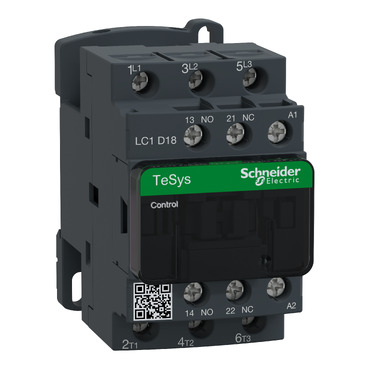

LC1D18B7 - Khởi Động Từ 3P 18A Coil 24VAC


Contactor Schneider 3P 18A Coil 24VAC

  • Mã sản phẩm: LC1D18B7
Giá bán: 604.010 ₫ (bao gồm VAT)
Giá gốc: 1.050.500 ₫ (bao gồm VAT)
Tình trạng tồn kho: Còn hàng

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 18A, 24V AC 50/60Hz coil, screw clamp terminals.

Specifications
RangeTeSys D
Country of Origin (Estimated)Indonesia (Other)
Warranty12 months
CO/CQYes (if)
Product name & Device short nameLC1D
Device applicationResistive load
Motor control
Poles description3P
[Ie] rated operational current18 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
32 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
18 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Motor power kW7.5 kW at 380...400 V AC 50/60 Hz (AC-3)
9 kW at 415...440 V AC 50/60 Hz (AC-3)
[Ue] rated operational voltagePower circuit: <= 690 V AC 25...400 Hz
Power circuit: <= 300 V DC
[Uc] control circuit voltage24 V AC 50/60 Hz
StandardsCSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508
IEC 60335-1
Pole contact composition3 NO
Auxiliary contact composition1 NO + 1 NC
Maximum operating rate3600 cyc/h 60 °C
Dimensions (mm)
(HxWxD)
77x45x86 mm
Net weight (Kg)0.33 kg
