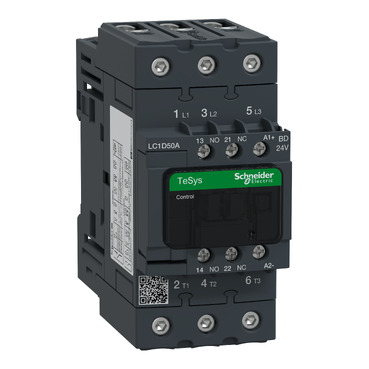

Khởi Động Từ 3P 50A Coil 24VDC


Contactor 3P 50A Coil 24VDC

  • Mã sản phẩm: LC1D50ABD
Giá bán: 3.829.760 ₫ (bao gồm VAT)
Giá gốc: 6.660.500 ₫ (bao gồm VAT)
Tình trạng tồn kho: Còn hàng

Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 50A, 24V DC 50/60Hz coil, screw clamp terminals.

Specifications
RangeTeSys D
Country of Origin (Estimated)Indonesia (Other)
Warranty12 months
CO/CQYes (if)
Product name & Device short nameLC1D
Device applicationResistive load
Motor control
Poles description3P
[Ie] rated operational current50 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
50 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
Motor power kW22 kW at 380...400 V AC 50/60 Hz (AC-3)
[Ue] rated operational voltagePower circuit: <= 690 V AC 25...400 Hz
Power circuit: <= 300 V DC
[Uc] control circuit voltage24 VDC
StandardsCSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508
IEC 60335-1
Pole contact composition3 NO
Auxiliary contact composition1 NO + 1 NC
Maximum operating rate3600 cyc/h 60 °C
Dimensions (mm)
(HxWxD)
122x55x120 mm
Net weight (Kg)0.93 kg
