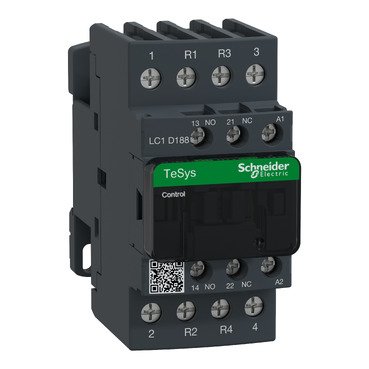

Contactor, TeSys Deca, 4P(2NO+2NC), AC-1, <=440V, 32A, 110VAC coil, screw clamp terminals.
| Specifications |
| Range | TeSys D |
| Country of Origin (Estimated) | Indonesia (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | LC1D |
| Device application | Resistive load |
| Poles description | 4P |
| [Ie] rated operational current | 32 A (at <60 °C) at <= 440 V AC AC-1 for power circuit |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz |
| [Uc] control circuit voltage | 110 V AC 50/60 Hz |
| Standards | CSA C22.2 No 14
EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
UL 508 |
| Pole contact composition | 2 NO + 2 NC |
| Auxiliary contact composition | 1 NO + 1 NC |
| Maximum operating rate | 2400 cyc/h 60 °C |
Dimensions (mm)
(HxWxD) | 91x45x99 mm |
| Net weight (Kg) | 0.425 kg |
