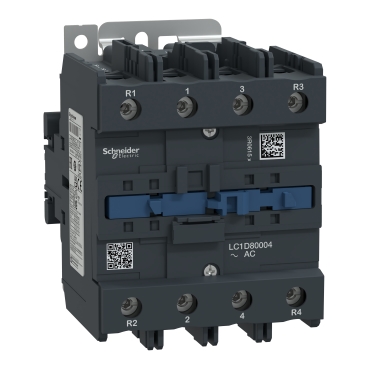

Contactor, TeSys Deca, 4P(4NO), AC-1, <=440V, 125A, 48V AC 50/60Hz coil, screw clamp terminal.
Specifications | LC1D80004E7 |
| Range | TeSys D |
| Country of Origin (Estimated) | Indonesia (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | LC1D |
| Device application | Resistive load |
| Poles description | 4P |
| [Ie] rated operational current | 125 A (at <60 °C) at <= 440 V AC AC-1 for power circuit
80 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
80 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
55 A (at <60 °C) at <= 400 V AC AC-4 for power circuit |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz
Power circuit: <= 300 V DC |
| [Uc] control circuit voltage | 48 V AC 50/60 Hz |
| Motor power kW | 22 kW at 220...230 V AC 50/60 Hz
37 kW at 380...400 V AC 50/60 Hz
45 kW at 660...690 V AC 50/60 Hz
55 kW at 500 V AC 50/60 Hz
45 kW at 415...440 V AC 50/60 Hz |
| Pole contact composition | 4 NO |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 125 A (at 60 °C) for power circuit |
| Coil technology | Without built-in suppressor module |
| Maximum operating rate | 3600 cyc/h 60 °C |
| mounting support | Plate
Rail |
| Standards | EN 60947-4-1
EN 60947-5-1
IEC 60947-4-1
IEC 60947-5-1
CSA C22.2 No 14
UL 60947-4-1
IEC 60335-2-40:Annex JJ
UL 60335-2-40:Annex JJ
IEC 60335-1:Clause 30.2 |
Dimensions (mm)
(HxWxD) | 127x96x125 mm |
| Net weight (Kg) | 1.76 kg |
