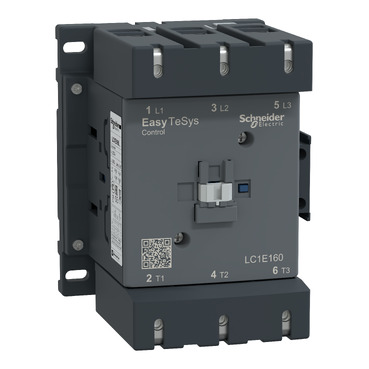

Khởi Động Từ 3P 160A Coil 110VAC


Contactor 3P 160A 110VAC

  • Mã sản phẩm: LC1E160F5
Giá bán: 3.853.850 ₫ (bao gồm VAT)
Giá gốc: 7.007.000 ₫ (bao gồm VAT)
Tình trạng tồn kho: Hết hàng

Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,160A,110V AC coil,50Hz.

Specifications
RangeTeSys
Country of Origin (Estimated)Indonesia (Other)
Warranty12 months
CO/CQYes (if)
Product name & Device short nameLC1E
Device applicationMotor control
Resistive load
Poles description3P
[Ie] rated operational current160 A (at <55 °C) at <= 440 V AC AC-3 for power circuit
200 A (at <55 °C) at <= 440 V AC AC-1 for power circuit
[Ue] rated operational voltagePower circuit: <= 690 V AC 50/60 Hz
[Uc] control circuit voltage110 V AC 50 Hz
StandardsIEC 60947-4-1
IEC 60947-1
IEC 60947-5-1
Pole contact composition3 NO
Auxiliary contact composition1 NO + 1 NC
Maximum operating rate1800 cyc/h 60 °C
Dimensions (mm)
(HxWxD)
158x120x132 mm
Net weight (Kg)2.3 kg
Motor power kW75 kW at 380...400 V
80 kW at 415 V
80 kW at 440 V
