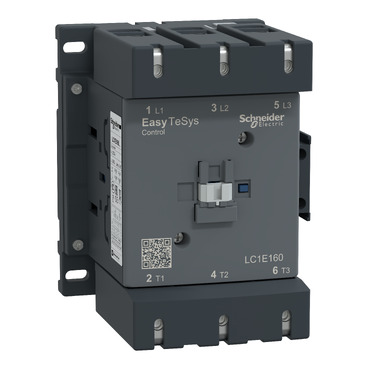

Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3,<=440V,160A,220V AC coil,50Hz.
| Specifications |
| Range | TeSys |
| Country of Origin (Estimated) | Indonesia (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | LC1E |
| Device application | Motor control
Resistive load |
| Poles description | 3P |
| [Ie] rated operational current | 160 A (at <55 °C) at <= 440 V AC AC-3 for power circuit
200 A (at <55 °C) at <= 440 V AC AC-1 for power circuit |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Uc] control circuit voltage | 220 V AC 50 Hz |
| Standards | IEC 60947-4-1
IEC 60947-1
IEC 60947-5-1 |
| Pole contact composition | 3 NO |
| Auxiliary contact composition | 1 NO + 1 NC |
| Maximum operating rate | 1200 cyc/h 55 °C |
Dimensions (mm)
(HxWxD) | 158x120x132 mm |
| Net weight (Kg) | 2.3 kg |
| Motor power kW | 75 kW at 380...400 V
80 kW at 415 V
80 kW at 440 V |
