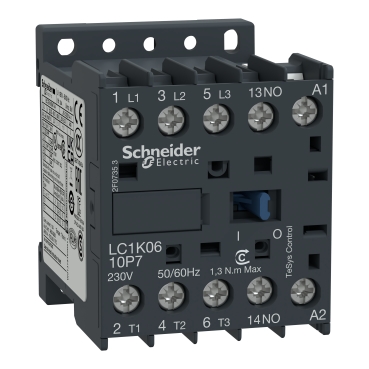

Contactor, TeSys K, 3P, AC-3/AC-3e,440V 16A, 1NO aux, 110V AC coil.
| Specifications |
| Range | TeSys |
| Country of Origin (Estimated) | Indonesia (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | LC1K |
| Device application | Motor control
Resistive load |
| Poles description | 3P |
| [Ie] rated operational current | 16 A (at <60 °C) at <= 440 V AC AC-3 for power circuit
16 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC <= 400 Hz
Signalling circuit: <= 690 V AC <= 400 Hz |
| [Uc] control circuit voltage | 110 V AC 50/60 Hz |
| Standards | EN/IEC 60947-4-1
GB/T 14048.4
UL 60947-4-1
CSA C22.2 No 60947-4-1
JIS C8201-4-1 |
| Pole contact composition | 3 NO |
| Auxiliary contact composition | 1 NO |
| Maximum operating rate | 3600 cyc/h |
Dimensions (mm)
(HxWxD) | 58x45x57 mm |
| Net weight (Kg) | 0.18 Kg |
| Motor power kW | 7.5 kW at 380...415 V AC 50/60 Hz AC-3
5.5 kW at 440 V AC 50/60 Hz AC-3 |
