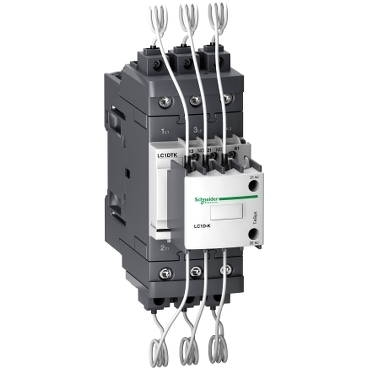

Capacitor contactor, Tesys Deca, 40kVAR at 400/415V 50Hz, 220V AC 50/60Hz coil, EverLink BTR screw terminals
Specifications | LC1DPKM7 |
| Range of product | TeSys
TeSys Deca |
| Country of Origin (Estimated) | France (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name | TeSys LC1D.K
TeSys Deca |
| Product or component type | Capacitor duty contactor |
| Device short name | LC1DTK |
| Device application | Control |
| Contactor application | Power factor correction |
| Poles description | 3P |
| Power pole contact composition | 3NO |
| [Ue] rated operational voltage | Power circuit: 690 V AC 50/60 Hz |
| Reactive power rating | 22 kvar at 230 V AC 50 Hz 60 °C
40 kvar at 400 V AC 50 Hz 60 °C
43 kvar at 440 V AC 50 Hz 60 °C
67 kvar at 690 V AC 50 Hz 60 °C
20 kvar at 230 V AC 60 Hz 60 °C
40 kvar at 460 V AC 60 Hz 60 °C
50 kvar at 575 V AC 60 Hz 60 °C |
| Control circuit type | AC at 50/60 Hz |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Auxiliary contact composition | 1 NO + 2 NC instantaneous |
| Electrical durability | 300000 cycles at Ue 400 V
200000 cycles at Ue 690 V |
| Mounting support | DIN rail
Plate |
| Tightening torque | Control circuit: 1.7 N.m - on screw clamp terminals
Power circuit: 5 N.m - on EverLink BTR screw connectors - cable 1…25 mm²
Power circuit: 8 N.m - on EverLink BTR screw connectors - cable 35 mm² |
| Auxiliary contacts type | type mechanically linked 1 NO + 2 NC conforming to IEC 60947-5-1 |
| Connections - terminals | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
Power circuit: EverLink BTR screw connectors 1 1…35 mm² - cable stiffness: solid
Power circuit: EverLink BTR screw connectors 2 1…25 mm² - cable stiffness: solid
Power circuit: EverLink BTR screw connectors 1 1…35 mm² - cable stiffness: flexible with or without cable end
Power circuit: EverLink BTR screw connectors 2 1…25 mm² - cable stiffness: flexible with or without cable end |
| Standards | EN/IEC 60947-1
EN/IEC 60947-4-1
UL 60947-4-1
CSA C22.2 No 60947-4-1
IEC 60335-1 |
| Dimensions (HxWxD) | 166x55x156 mm |
| Net weight | 1.3 kg |
