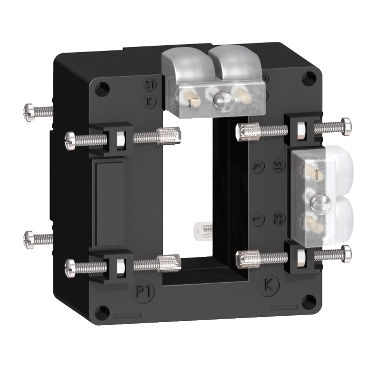

Current Transformer Tropicalised 2500 5 double output for bars 38x127.
Specifications | METSECT5DB250 |
| Range | PowerLogic |
| Country of Origin (Estimated) | Tunisia |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name | CT |
| Product or component type | Current transformer |
| Secondary current | 5 A |
| Accuracy class | Class 0.5 at 20 VA
Class 1 at 25 VA |
| [In] rated current | 2500A |
| Current transformer type | Tropicalised for cable |
| Current transformer ratio | 2500/5 |
| Maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| Mounting mode | Insulated locking screw |
| Mounting support | Busbar |
| Electrical insulation class | Class B |
| Sealing | With |
| Standards | VDE 0414
IEC 61869-2 |
| Width | Inner: 38 mm
Outside: 99 mm |
| Height | Inner: 127 mm
Outside: 160 mm |
| Depth | Frame : 40 mm
Total : 78.4 mm |
| Opening of bars | 127 x 38 |
| Product weight | 1.082 kg |
