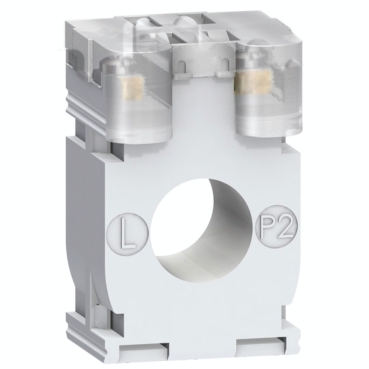

Current Transformer Tropicalised DIN Mount 40 5 for cables d. 21.
| Specifications | METSECT5CC004 |
| Range | PowerLogic |
| Country of Origin (Estimated) | Tunisia |
| Warranty | 12 months |
| CO/CQ | Yes (if need) |
| Product name | CT |
| Product or component type | Current transformer |
| Secondary current | 5 A |
| Accuracy class | Class 3 at 1 VA |
| [In] rated current | 40 A |
| Current transformer type | Tropicalised for cable |
| Current transformer ratio | 40/5 |
| Maximum safety factor | 5 |
| [Ue] rated operational voltage | < 720 V AC 50/60 Hz |
| Mounting mode | By screws
Clip-on |
| Mounting support | Mounting plate
DIN rail |
| Electrical insulation class | Class B |
| Cable outer diameter | 21 mm |
| Sealing | With |
| Standards | VDE 0414
IEC 61869-2 |
| Width | Outside: 44 mm |
| Height | Outside: 65 mm |
| Depth | Frame : 30 mm
Total : 37 mm |
| Diameter | 21 mm |
| Product weight | 0.19 kg |
