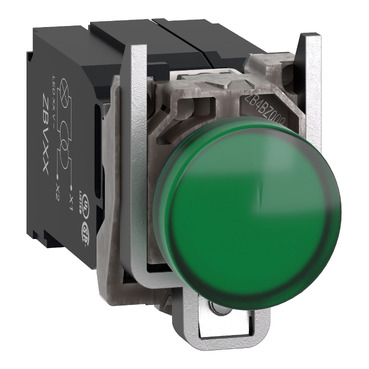

Specifications | XB4BV5B3 |
| Range of product | Harmony XB4 |
| Country of Origin (Estimated) | France (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Pilot light |
| Device short name | XB4 |
| Mounting diameter | 22.5 mm |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Head type | Standard |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Green |
| Light source | Universal LED |
| Operator additional information | With plain lens |
| Bulb base | Integral LED |
| Light block supply | Via transformer 1.2 VA 24 V |
| Light source colour | Green |
| [Us] rated supply voltage | 400 V AC at 50 Hz |
| Supply voltage limits | 407…423 V AC |
| Device presentation | Complete product |
| Signalling type | Steady |
| Service life | 100000 h at rated voltage and 25 °C |
| IP degree of protection | IP66 conforming to IEC 60529
IP67
IP69
IP69K |
| Standards | IEC 60947-5-5
UL 508
IEC 60947-1
IEC 60947-5-1
IEC 60947-5-4
CSA C22.2 No 14
JIS C8201-5-1
JIS C8201-1 |
| Dimensions (HxWxD) | 47x40x90 mm |
| Net weight | 0.172 kg |
