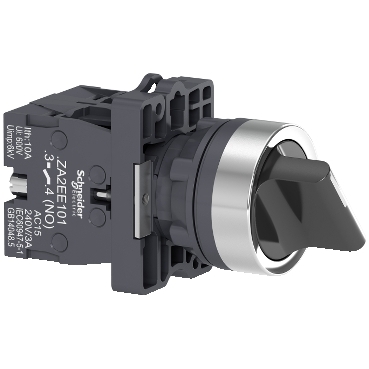

Specifications | XA2ED53 |
| Range of product | Easy Harmony XA2 |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Complete selector switch |
| Device short name | XA2 |
| Bezel material | Plastic |
| Mounting diameter | 22.5 mm |
| Operating position | Any position |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Shape of signaling unit head | Round |
| Type of operator | Spring return to center |
| Operator profile | Black standard handle |
| Operator position information | 3 positions 45° |
| Contacts type and composition | 2 NO |
| Contact operation | Slow-break |
| Mechanical durability | 300000 cycles |
| [Ith] conventional free air thermal current | 10 A |
| Cap/operator or lens colour | Black |
| Standards | GB 14048.1
IEC 60947-1
GB 14048.5
IEC 60947-5-1 |
| Dimensions (HxWxD) | 42x30x68.2 mm |
| Net weight | 0.054 kg |
