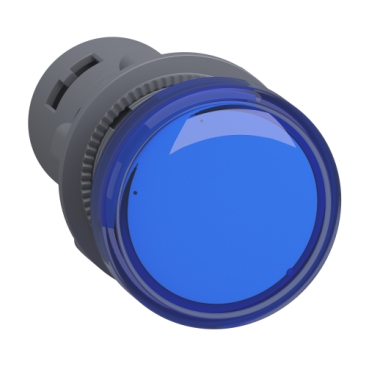

Specifications | XA2EVM6LC |
| Range of product | Easy Harmony XA2 |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Monolithic pilot light |
| Device short name | XA2 |
| Mounting diameter | 22.5 mm |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Blue |
| Light source | LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 220...230 V AC 50/60 Hz |
| Device mounting | Fixing hole 22.3 +0.4/0 conforming to IEC 60947-5-1 |
| Fixing center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm
>= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
| Fixing mode | Fixing nut beneath head recommended torque: 2.2 N.m (+/- 0.2 N.m) |
| Supply voltage limits | 0.8…1.2 V AC |
| Signalling type | Steady |
| Service life | 40000 h at rated voltage and 25 °C |
| Standards | IEC 60947-5-1
GB 14048.1
IEC 60947-1
GB 14048.5
IEC 60529
IEC 50102 |
| Dimensions (HxWxD) | 29x29x53 mm |
| Net weight | 0.02Kg |
