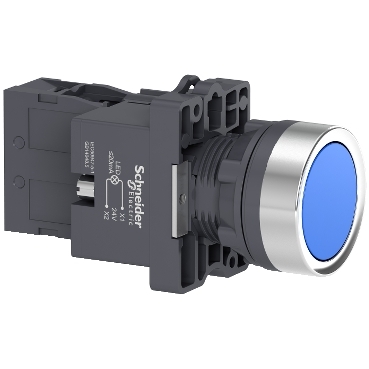

Specifications | XA2EW36M1 |
Range of product | Easy Harmony XA2 |
Country of Origin (Estimated) | China (Other) |
Warranty | 12 months |
CO/CQ | Yes (if) |
Product or component type | Complete illuminated Push-button |
Device short name | XA2 |
Bezel material | Plastic |
Mounting diameter | 22.5 mm |
Operating position | Any position |
Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
Fixing mode | Fixing nut recommended torque: 2.2 N.m (Us +/- 10 %) |
Type of operator | Spring return |
Operator profile | Blue flush |
Cap/operator or lens colour | Blue |
Contacts type and composition | 1 NO |
Signalling type | Steady |
Light source | LED |
Bulb base | BA 9s |
[Us] rated supply voltage | 220 V AC 50/60 Hz |
Supply voltage limits | 176…242 V AC |
Service life | 10000 h |
Contact operation | Slow-break |
Mechanical durability | 1500000 cycles |
[Ith] conventional free air thermal current | 10 A |
Standards | GB 14048.1 IEC 60947-1 GB 14048.5 IEC 60947-5-1 |
Dimensions (HxWxD) | 42x30x79.5 mm |
Net weight | 0.064Kg |
