Specifications | XA2EW34B1 |
| Range of product | Easy Harmony XA2 |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |

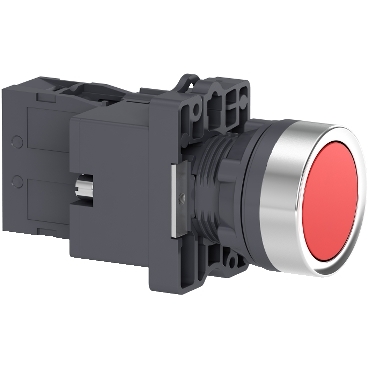

| Product or component type | Complete illuminated Push-button |
| Device short name | XA2 |
| Bezel material | Plastic |
| Mounting diameter | 22.5 mm |
| Operating position | Any position |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut recommended torque: 2.2 N.m (Us +/- 10 %) |
| Type of operator | Spring return |
| Operator profile | Red flush |
| Cap/operator or lens colour | Red |
| Contacts type and composition | 1 NO |
| Signalling type | Steady |
| Light source | LED |
| Bulb base | BA 9s |
| [Us] rated supply voltage | 24 V AC/DC 50/60 Hz |
| Supply voltage limits | 19…26 V AC/DC |
| Service life | 1500000 cycles |
| Contact operation | Slow-break |
| Mechanical durability | 1500000 cycles |
| [Ith] conventional free air thermal current | 10 A |
| Standards | GB 14048.1
IEC 60947-1
GB 14048.5
IEC 60947-5-1 |
| Dimensions (HxWxD) | 42x30x74.5 mm |
| Net weight | 0.056Kg |
