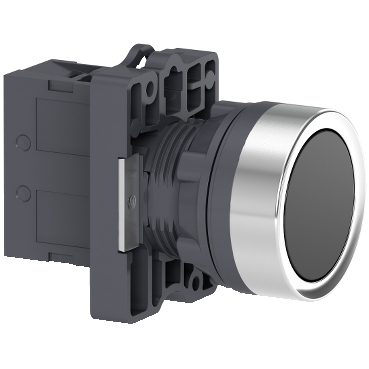

Specifications | XA2EA21 |
| Range of product | Easy Harmony XA2 |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Complete push-button |
| Device short name | XA2 |
| Bezel material | Plastic |
| Fixing collar material | Plastic |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 1 |
| Operating position | Any position |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Shape of signaling unit head | Round |
| Type of operator | Spring return |
| Operator profile | Black flush |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Mechanical durability | 1500000 cycles |
| [Ith] conventional free air thermal current | 10 A |
| Cap/operator or lens colour | Black |
| Standards | IEC 60947-5-1
IEC 60947-1
GB 14048.5
GB 14048.1 |
| Dimensions (HxWxD) | 42x30x54.7 mm |
| Net weight | 0.032 kg |
