Specifications | XA2ES542 |
| Range of product | Easy Harmony XA2 |
| Country of Origin (Estimated) | China (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |

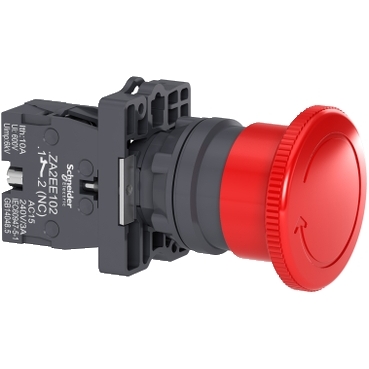

| Product or component type | Complete emergency switching off push-button |
| Device short name | XA2 |
| Bezel material | Plastic |
| Mounting diameter | 22.5 mm |
| Operating position | Any position |
| Device mounting | Fixing hole - diameter: 22 mm |
| Fixing center | >= 30 x 40 mm (panel) - thickness: 1…5 mm |
| Fixing mode | Fixing nut: 2…2.4 N.m |
| Shape of signaling unit head | Round |
| Type of operator | Turn to release |
| Reset | Turn to release |
| Operator profile | Red mushroom Ø 40 mm |
| Cap/operator or lens colour | Red |
| Contacts type and composition | 1 NC |
| Contact operation | Slow-break |
| Mechanical durability | 100000 cycles |
| [Ith] conventional free air thermal current | 10 A |
| Standards | IEC 60947-5-1
IEC 60947-1
GB 14048.1
GB 14048.5 |
| Dimensions (HxWxD) | 42x30x74.2 mm |
| Net weight | 0.058 kg |
