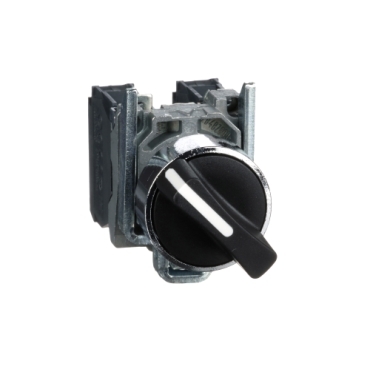

Specifications | XB4BD25 |
| Range of product | Harmony XB4 |
| Country of Origin (Estimated) | France (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Selector switch |
| Device short name | XB4 |
| Mounting diameter | 22.5 mm |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Head type | Standard |
| IP degree of protection | IP69
IP69K
IP67 conforming to IEC 60529 |
| Shape of signaling unit head | Round |
| Type of operator | Stay put |
| Operator profile | Black standard handle |
| Operator position information | 2 positions 90° |
| Contacts type and composition | 1 NO + 1 NC |
| Contact operation | Slow-break |
| Mechanical durability | 1000000 cycles |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Standards | CSA C22.2 No 14
IEC 60947-5-1
JIS C8201-5-1
IEC 60947-1
IEC 60947-5-4
IEC 60947-5-5
UL 508
JIS C8201-1 |
| Dimensions (HxWxD) | 47x30x68 mm |
| Net weight | 0.1055 kg |
