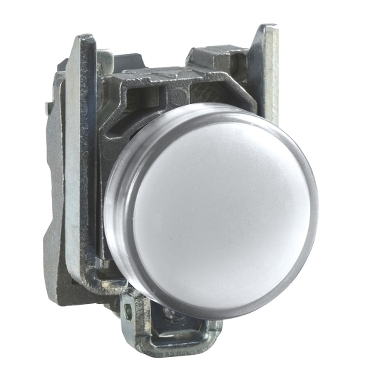

XB4BVM1 - Đèn Báo Kim Loại XB4 LED Trắng 230VAC


Đèn Báo Schneider Kim Loại XB4 LED Trắng 230VAC

  • Mã sản phẩm: XB4BVM1
Giá bán: 458.676 ₫ (bao gồm VAT)
Giá gốc: 819.500 ₫ (bao gồm VAT)
Tình trạng tồn kho: Còn hàng

Specifications
XB4BVM1
Range of productHarmony XB4
Country of Origin (Estimated)France (Other)
Warranty12 months
CO/CQYes (if)
Product or component typePilot light
Device short nameXB4
Mounting diameter22.5 mm
Bezel materialChromium plated metal
Fixing collar materialZamak
Head typeStandard
Shape of signaling unit headRound
Cap/operator or lens colourWhite
Light sourceUniversal LED
Operator additional informationWith plain lens
Bulb baseIntegral LED
Light source colourWhite
[Us] rated supply voltage230...240 V AC 50/60 Hz
Supply voltage limits195…264 V AC
Device presentationComplete product
Signalling typeSteady
Service life100000 h at rated voltage and 25 °C
IP degree of protectionIP66 conforming to IEC 60529
IP67
IP69
IP69K
StandardsIEC 60947-5-5
UL 508
IEC 60947-1
IEC 60947-5-1
IEC 60947-5-4
CSA C22.2 No 14
JIS C8201-5-1
JIS C8201-1
Dimensions (HxWxD)47x30x54 mm
Net weight0.08 kg
