Specifications | XB4BW35M5 |
| Range of product | Harmony XB4 |
| Country of Origin (Estimated) | France (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |

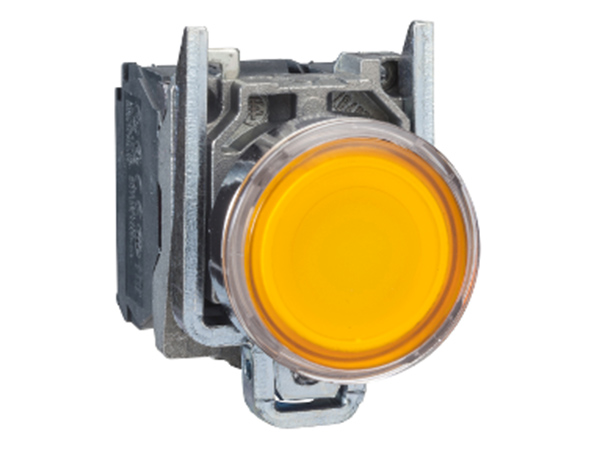

| Product or component type | Illuminated push-button |
| Device short name | XB4 |
| IP degree of protection | IP66 conforming to IEC 60529
IP69
IP69K
IP67 |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 22.5 mm |
| Type of operator | Spring return |
| Operator profile | Orange flush |
| Head type | Standard |
| Operator additional information | With plain lens |
| Contacts type and composition | 1 NO + 1 NC |
| Device presentation | Complete product |
| Contact operation | Slow-break |
| Light source | Universal LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 230...240 V AC at 50/60 Hz |
| Supply voltage limits | 195…264 V AC |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Mechanical durability | 300000 cycles |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Standards | IEC 60947-5-5
CSA C22.2 No 14
IEC 60947-5-4
IEC 60947-5-1
JIS C8201-5-1
UL 508
IEC 60947-1
JIS C8201-1 |
| Dimensions (HxWxD) | 47x30x57 mm |
| Net weight | 0.097 kg |
