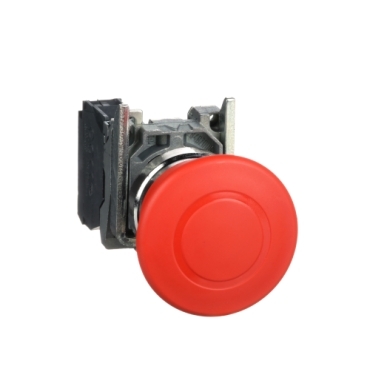

Specifications | XB4BT842 |
| Range of product | Harmony XB4 |
| Country of Origin (Estimated) | France (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Emergency switching off push-button
Emergency stop push-button |
| Device short name | XB4 |
| IP degree of protection | IP66 conforming to IEC 60529
IP69
IP69K
IP67 |
| Bezel material | Chromium plated metal |
| Fixing collar material | Zamak |
| Mounting diameter | 22.5 mm |
| Type of operator | Trigger action and mechanical latching |
| Operator profile | Red mushroom Ø 40 mm, unmarked |
| Head type | Standard |
| Reset | Push-pull |
| Contacts type and composition | 1 NC |
| Device presentation | Complete product |
| Contact operation | Slow-break |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Mechanical durability | 300000 cycles |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Standards | IEC 60947-5-1
UL 508
CSA C22.2 No 14
ISO 13850
IEC 60947-5-5
JIS C8201-5-1
IEC 60947-1
IEC 60947-5-4
IEC 60204-1
IEC 60364-5-53
JIS C8201-1 |
| Dimensions (HxWxD) | 47x40x82 mm |
| Net weight | 0.125 kg |
