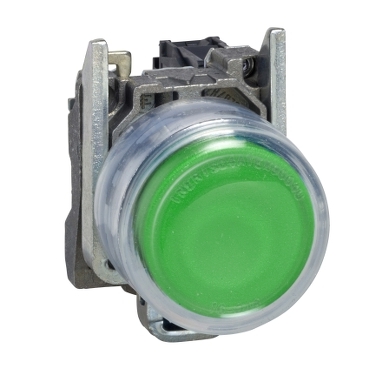

Specifications | XB4BA61 |
| Range of product | Harmony XB4 |
| Country of Origin (Estimated) | France (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Push-button |
| Device short name | XB4 |
| IP degree of protection | IP66 conforming to IEC 60529
IP69
IP69K
IP67 |
| Bezel material | Chromium plated metal |
| Head type | Standard |
| Fixing collar material | Zamak |
| Mounting diameter | 22.5 mm |
| Type of operator | Spring return |
| Operator profile | Green projecting, unmarked (Bọc chụp cao su trong) |
| Operator additional information | Clear boot (Chụp mũ cao su trong) |
| Contacts type and composition | 1 NO |
| Device presentation | Complete product |
| Contact operation | Slow-break |
| Cap/operator or lens colour | Green |
| Positive opening | Without |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Standards | CSA C22.2 No 14
IEC 60947-1
IEC 60947-5-4
IEC 60947-5-1
IEC 60947-5-5
UL 508
JIS C8201-5-1
JIS C8201-1 |
| Dimensions (HxWxD) | 47x30x61 mm |
| Net weight | 0.082 kg |
