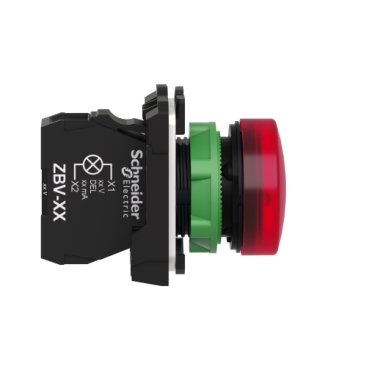

Specifications | XB5AVB4 |
| Range of product | Harmony XB5 |
| Country of Origin (Estimated) | France (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Pilot light |
| Device short name | XB5 |
| Mounting diameter | 22.5 mm |
| Bezel material | Dark grey plastic |
| Fixing collar material | Plastic |
| Head type | Standard |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Red |
| Light source | Universal LED |
| Operator additional information | With plain lens |
| Bulb base | Integral LED |
| Light source colour | Red |
| [Us] rated supply voltage | 24 V AC/DC at 50/60 Hz |
| Device presentation | Complete product |
| Supply voltage limits | 19.2…30 V DC
21.6…26.4 V AC |
| Signalling type | Steady |
| Service life | 100000 h at rated voltage and 25 °C |
| Standards | CSA C22.2 No 14
IEC 60947-5-1
IEC 60947-5-4
UL 508
IEC 60947-1
JIS C8201-5-1
JIS C8201-1 |
| Dimensions (HxWxD) | 42x30x54 mm |
| Net weight | 0.038 kg |
