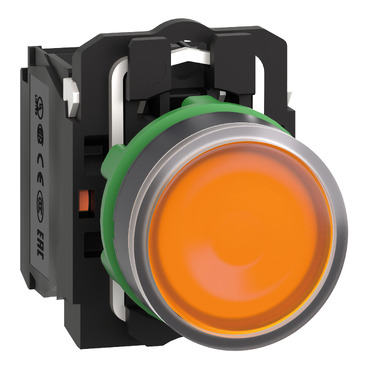

Specifications | XB5AW35M5 |
| Range of product | Harmony XB5 |
| Country of Origin (Estimated) | France (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Illuminated push-button |
| Device short name | XB5 |
| IP degree of protection | IP66 conforming to IEC 60529
IP69
IP69K
IP67 |
| Bezel material | Dark grey plastic |
| Head type | Standard |
| Fixing collar material | Plastic |
| Mounting diameter | 22.5 mm |
| Type of operator | Spring return |
| Operator profile | Orange flush, unmarked |
| Operator additional information | With plain lens |
| Contacts type and composition | 1 NC + 1 NO |
| Device presentation | Complete product |
| Contact operation | Slow-break |
| Light source | Universal LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 230...240 V AC 50/60 Hz |
| Cap/operator or lens colour | Orange |
| Positive opening | With conforming to IEC 60947-5-1 appendix K |
| Mechanical durability | 10000000 cycles |
| Tightening torque | 0.8…1.2 N.m conforming to IEC 60947-1 |
| Standards | IEC 60947-1
UL 508
IEC 60947-5-1
CSA C22.2 No 14
JIS C8201-5-1
IEC 60947-5-4
JIS C8201-1 |
| Dimensions (HxWxD) | 42x30x57 mm |
| Net weight | 0.056 kg |
