Specifications | XB7EV06MP |
| Range of product | Harmony XB7 |
| Country of Origin (Estimated) | Indonesia (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |

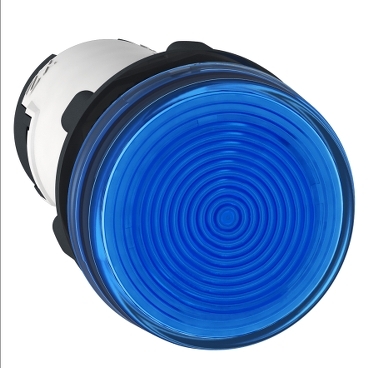

| Product or component type | Pilot light |
| Device short name | XB7 |
| Mounting diameter | 22 mm |
| Shape of signaling unit head | Round |
| Cap/operator or lens colour | Blue |
| Light source | LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 230...240 V AC 50/60 Hz |
| Device presentation | Monolithic product |
| Device mounting | Fixing hole - diameter: 22.5 mm 22.3 +0.4/0 conforming to IEC 60947-5-1 |
| Fixing mode | Fixing nut beneath head: 2…2.4 N.m |
| Supply voltage limits | 195…264 V AC |
| Signalling type | Steady |
| Service life | 70000 h at rated voltage and 25 °C |
| Standards | UL 508
JIS C8201-5-1
CSA C22.2 No 14
IEC 60947-5-1
IEC 60947-1
JIS C8201-1 |
| Dimensions (HxWxD) | 29x29x54 mm |
| Net weight | 0.02Kg |
