Specifications | XB7NW38B1 |
| Range of product | Harmony XB7 |
| Country of Origin (Estimated) | Indonesia (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |

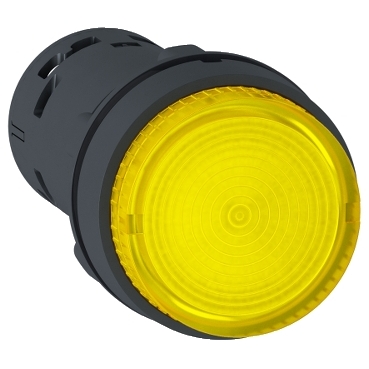

| Product or component type | Illuminated push-button |
| Device short name | XB7 |
| IP degree of protection | IP20 (rear face) conforming to IEC 60529
IP65 (front face) conforming to IEC 60529 |
| Mounting diameter | 22 mm |
| Fixing center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm
>= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
| Fixing mode | Fixing nut beneath head: 2…2.4 N.m |
| Type of operator | Spring return |
| Operator profile | Yellow projecting, unmarked |
| Contacts type and composition | 1 NO |
| Light source | LED |
| Bulb base | Integral LED |
| [Us] rated supply voltage | 24 V AC/DC |
| Device presentation | Monolithic product |
| Contact operation | Slow-break |
| Positive opening | With (only NO) |
| Mechanical durability | 300000 cycles |
| Standards | JIS C8201-5-1
IEC 60947-5-1
IEC 60947-1
UL 508
CSA C22.2 No 14
JIS C8201-1 |
| Dimensions (HxWxD) | 29x29x57.5 mm |
| Net weight | 0.023 kg |
