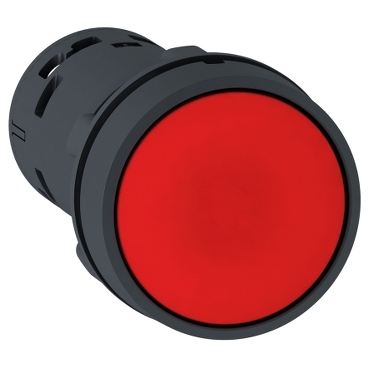

Specifications | XB7NA42 |
| Range of product | Harmony XB7 |
| Country of Origin (Estimated) | Indonesia (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product or component type | Push-button |
| Device short name | XB7 |
| IP degree of protection | IP20 (rear face) conforming to IEC 60529
IP65 (front face) conforming to IEC 60529 |
| Mounting diameter | 22 mm |
| Fixing center | >= 30 x 40 mm (support panel) metal - thickness: 1…6 mm
>= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm |
| Fixing mode | Fixing nut beneath head: 2…2.4 N.m |
| Type of operator | Spring return |
| Operator profile | Red flush, unmarked |
| Contacts type and composition | 1 NC |
| Device presentation | Monolithic product |
| Contact operation | Slow-break |
| Positive opening | With NC contact conforming to IEC 60947-5-1 appendix K |
| Mechanical durability | 1000000 cycles |
| Standards | IEC 60947-5-1
IEC 60947-1
CSA C22.2 No 14
UL 508
JIS C8201-5-1
JIS C8201-1 |
| Dimensions (HxWxD) | 29x29x51.5 mm |
| Net weight | 0.021Kg |
