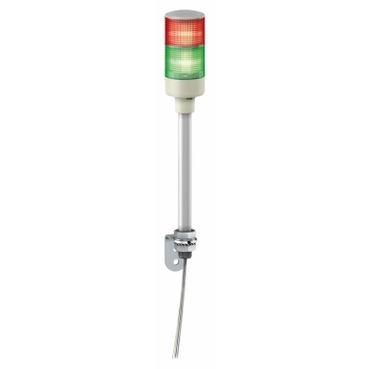

Monolithic tower lights, Harmony XVG, 60mm, red green, steady light, aluminium tube mounting and L bracket, IP23, 24V AC/DC
Specifications | XVGB2 |
Range of product | Harmony XVG |
Country of Origin (Estimated) | Indonesia (Other) |
Warranty | 12 months |
CO/CQ | Yes (if) |
Product name | XVG |
Product or component type | Complete pre-wired monolithic tower light |
Beacon or indicator bank unit type | 2 illuminated units |
Material | PC (UL94 V-2): globe ABS (UL94HB): tube body Aluminium: tube |
Light source | LED steady red LED steady green |
Light block color | Red/green |
Device mounting | Tube with L bracket |
Mounting diameter | 60 mm |
[Us] rated supply voltage | 24 V AC/DC |
Cable cross section | 0.33 mm² |
Discrete output type | PNP and NPN |
Indicator bank base type | Base without buzzer |
Current consumption | 68 mA |
Noise level | 0…80 dB at 1 m |
Standards | IEC 60947-5-1 IEC 60947-1 |
Product weight | 0.42 kg |
