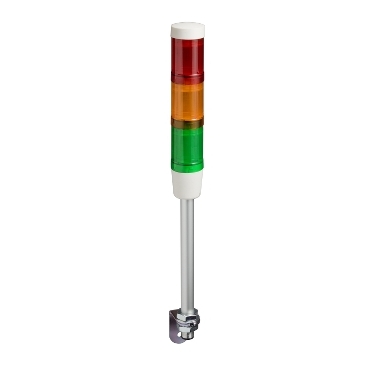

Pre assembled and pre cabled indicator bank, Harmony XVM, with buzzer + 3 illuminated units, 45mm, 230V AC
Specifications | XVMM2RAGSSB |
| Range of product | Harmony XVM |
| Country of Origin (Estimated) | Indonesia (Other) |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name | XVM |
| Product or component type | Pre-assembled and pre-cabled indicator bank |
| Beacon or indicator bank unit type | 3 illuminated units |
| Light source | Green super bright LED with BA 15d base steady signalling
Orange super bright LED with BA 15d base steady signalling
Red super bright LED with BA 15d base steady signalling |
| Light block color | Red/orange/green |
| [Us] rated supply voltage | 230 V AC |
| Indicator bank base type | Base with integrated buzzer |
| Mounting mode | Vertical |
| Kit composition | Base unit
Cover
Plastic fixing plate
Aluminium support tube |
| Mounting diameter | 45 mm |
| Connections - terminals | Flying leads,clamping capacity: 1 x 0.325 mm² (AWG 22) |
| Mounting support | Aluminium tube |
| Short-circuit protection | 0.2 A |
| [Ui] rated insulation voltage | 250 V conforming to IEC 60947-1 |
| Nominal voltage limit | 0.85...1.1 Un conforming to IEC 60947-5-1 |
| Current consumption | 18 mA on base unit
15 mA on steady LED unit |
| Noise level | 0…80 dB at 1 m |
| Standards | IEC 60947-5-1
IEC 60947-1 |
| Product weight | 0.453 kg |
