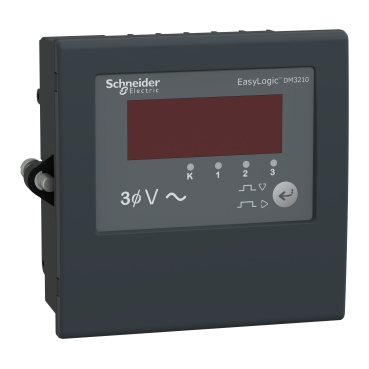

EasyLogic - Digital Panel Meter DM3000 - VoltMeter - three phases.
| Specifications |
| Range of product | EasyLogic DM3000 |
| Country of Origin (Estimated) | India |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | DM3210 |
| Product or component type | Voltmeter |
| Device application | Load control
Test laboratories
GenSet |
| Poles description | 3P + N
3P |
| Type of measurement | Voltage |
| Rated voltage | 100...230 V AC +/- 20 %
100...230 V DC +/- 20 % |
| Display digits | 4 |
| Full scale display | 999.9 |
| Measurement voltage | 25…277 V AC phase to neutral, 50/60 Hz +/- 5 Hz
44…480 V AC phase to phase, 50/60 Hz +/- 5 Hz |
| Analogue input type | Voltagethree phase |
| Accuracy | Voltage +/- 0.5 % of full scale for class 0.5 |
| Control type | Selector switch built-in |
| Mounting support | Panel |
Dimensions (mm)
(H x W x D) | 96x96x38 mm |
| Net weight | 170 GRM |
| Cut-out dimensions | 92 x 92 mm |
