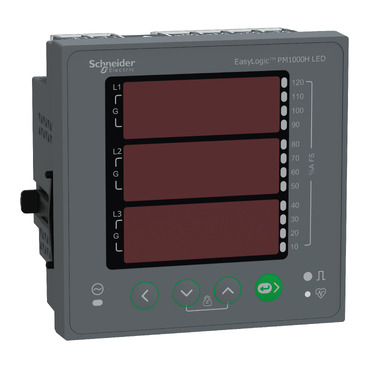

EasyLogic PM1130H Current, Voltage,Frequency,Power factor,Phase angle, RPM, Peak demand power, Harmonic distorsion (I THD & U THD), Active power,Active Energy, RS485, Class 0.5
| Specifications METSEPM1130HCL05RS |
| Range of product | EasyLogic PM11XXH RS |
| Country of Origin (Estimated) | India |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | PM1130H |
| Product or component type | Dual source energy meter |
| Power quality analysis | Total harmonic distortion |
| Device application | Energy monitoring
Main or redundant power monitoring |
| Type of network | 2P
2P + N
3P
1P + N
3P + N |
| Type of measurement | Current
Voltage
Frequency
Power factor
Phase angle
RPM
Peak demand power
Harmonic distorsion (I THD & U THD)
Active power
Active energy |
| Metering type | Unbalance current
Power factor and displacement PF (signed, four quadrant)
Reactive power Q, Q1, Q2, Q3
Average current Iavg
Active, reactive, apparent energy (signed, two quadrant)
Active power P, P1, P2, P3
Frequency
Calculated neutral current
Voltage U21, U32, U13, V1, V2, V3
Unbalance voltage
Rotation speed
Demand power P, Q, S
Phase currents
Apparent power S, S1, S2, S3
Phase current I1, I2, I3 RMS
Average voltage Vavg |
| Counter functions | ON-load source 1 hour counting
ON hour counting
ON-load source 2 hour counting
Power interruption |
| [Us] rated supply voltage | 48...277 V AC 45...65 Hz
48...277 V DC |
| [In] rated current | 5 A
1 A |
| Display type and colour | 7 segments LED and Red |
| Display digits | 12 digit(s) - 14.2 mm in height |
| Communication of data | Last cleared log
Reading of measurements
All counters
Revolution speed
Instantaneous and demand values |
| Communication port protocol | Modbus at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires, insulation 2500 V |
| Communication port support | RS485 |
| Measurement current | 5…6000 mA |
| Signal | Voltage (impedance 5 MOhm)4 x
Current 0.005...10 A (impedance 0.3 MOhm)6 x |
| Measurement voltage | 35…480 V AC 50...60 Hz between phases
35…277 V AC 50...60 Hz between phase and neutral
277…999000 V AC 50...60 Hz with external VT |
| Frequency measurement range | 45…65 Hz |
| Number of outputs | 1 relay |
| Measurement accuracy | Current +/- 0.5 %
Voltage +/- 0.5 %
Frequency +/- 0.05 %
Power factor +/- 0.01
Reactive power +/- 2 %
Reactive energy +/- 2 %
Active power +/- 0.5 %
Apparent power +/- 0.5 %
Active energy +/- 0.5 %
Apparent energy +/- 0.5 %
Harmonic distorsion (I THD & U THD) +/- 5 % |
| Accuracy class | Class 2 reactive energy conforming to IEC 62053-23
Class 0.5 active energy conforming to IEC 62053-22 |
| Material | Polycarbonate |
Dimensions (mm)
(H x W x D) | 96x96x52mm |
| Cut-out dimensions | 92 x 92 mm |
| Net weight | 300 GRM |
