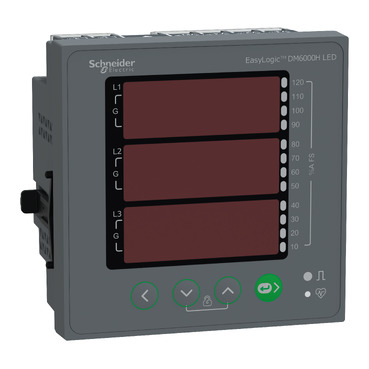

EasyLogic DM6200H Type of measurement Current, Voltage, Frequency, RPM Class 1, RS485.
| Specifications |
| Range of product | EasyLogic DM6X00H RS |
| Country of Origin (Estimated) | India |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | DM6200H |
| Product or component type | VAF PF meter |
| Device application | Remote monitoring |
| Type of network | 3P + N
3P
1P + N
2P + N
2P |
| Type of measurement | Current
Voltage
Frequency
RPM |
| Metering type | Unbalance current
Rotation speed
Average current Iavg
Average voltage Vavg
Unbalance voltage
Phase currents
Frequency
Calculated neutral current
Voltage U21, U32, U13, V1, V2, V3 |
| Counter functions | ON hour counting
Power interruption |
| [Us] rated supply voltage | 48...277 V AC 45...65 Hz
48...277 V DC |
| [In] rated current | 1 A
5 A |
| Display type and colour | 8 segments LED and Red |
| Display digits | 12 digit(s) - 14.2 mm in height |
| Communication of data | Instantaneous and demand values
Revolution speed
All counters
Reading of measurements |
| Communication port protocol | Modbus at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2-wire, insulation 2500 V |
| Communication port support | Screw terminal block: RS485 |
| Measurement current | 5…6000 mA |
| Signal | Current 0.005...10 A (impedance 0.3 MOhm)6 x |
| Measurement voltage | 46…277 V AC 50...60 Hz between phase and neutral
80…480 V AC 50...60 Hz between phases
277…999000 V AC 50...60 Hz with external VT |
| Frequency measurement range | 45…65 Hz |
| Number of inputs | 2 |
| Measurement accuracy | Frequency +/- 0.05 %
Power factor +/- 0.01
Current +/- 1 %
Voltage +/- 1 % |
| Accuracy class | Class 1 |
| Material | Polycarbonate |
Dimensions (mm)
(H x W x D) | 96x96x49 mm |
| Cut-out dimensions | 92 x 92 mm |
| Net weight | 300 GRM |
