| Specifications |

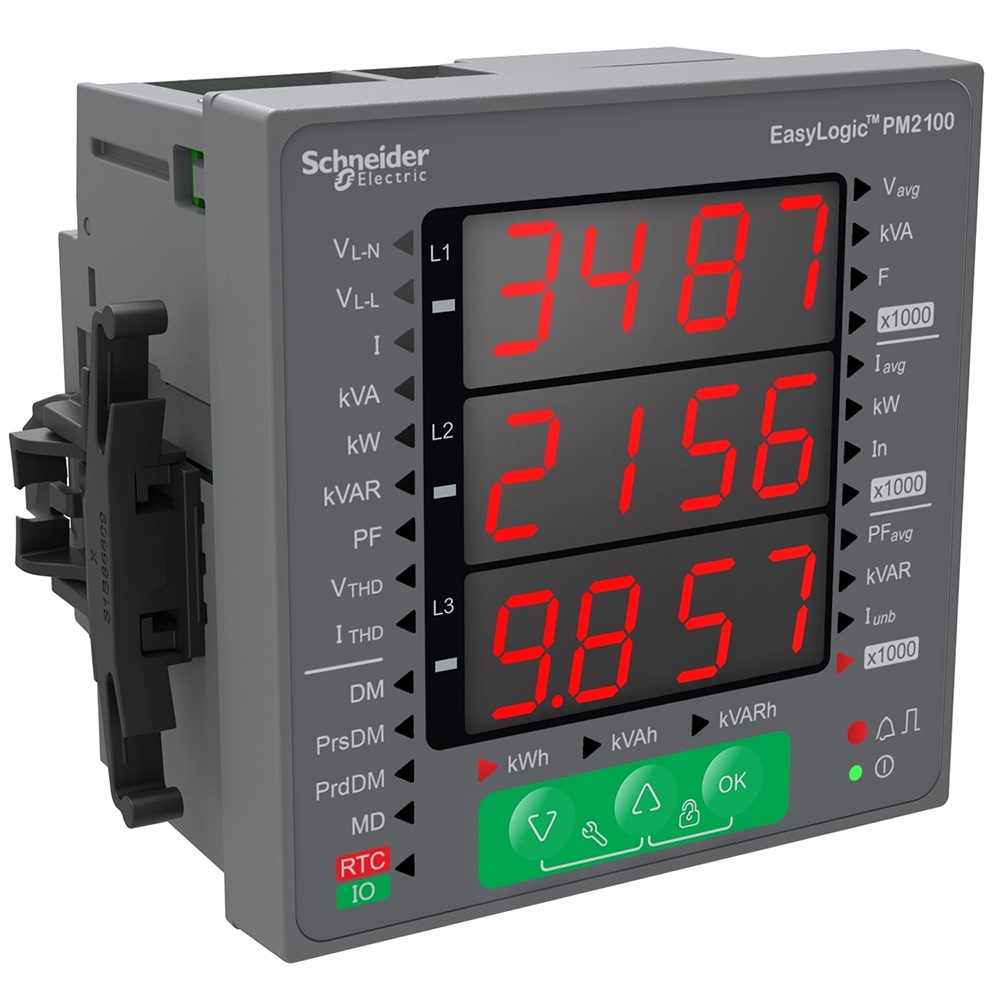

| Range of product | EasyLogic PM2100 |
| Country of Origin (Estimated) | India |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | PM2120 |
| Product or component type | Power meter |
| Power quality analysis | Total harmonic distortion
up to the 31st harmonic |
| Device application | Power monitoring
Sub billing |
| Type of measurement | Apparent power min/max, total
Active and reactive power min/max, total
Current min/max, avg
Voltage min/max, avg
Frequency min/max, avg
Total current harmonic distortion THD (I) per phase
Total voltage harmonic distortion THD (U) per phase
Power factor min/max, avg
Apparent energy total
Active and reactive energy total |
| Metering type | Peak demand currents
Active power P, P1, P2, P3
Demand power P, Q, S
Reactive power Q, Q1, Q2, Q3
Apparent power S, S1, S2, S3
Active, reactive, apparent energy (signed, four quadrant)
Voltage U, U21, U32, U13, V, V1, V2, V3
Current I, I1, I2, I3
Calculated neutral current
Unbalance current
Peak demand power PM, QM, SM |
| [Us] rated supply voltage | 35…480 V AC 50/60 Hz between phases
20…277 V AC 50/60 Hz between phase and neutral
480…999000 V AC 50/60 Hz with external VT |
| [In] rated current | 5 A
1 A |
| Display type and colour | 7 segments LED and Red |
| Display digits | 12 digit(s) - 14.2 mm in height |
| Communication port protocol | Modbus RTU at 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps even/odd or none - 2 wires, insulation 2500 V |
| Communication port support | Screw terminal block: RS485 |
| Function available | Real time clock |
| Measurement current | 5…6000 mA |
| Measurement voltage | 35…480 V AC 50/60 Hz between phases
20…277 V AC 50/60 Hz between phase and neutral
480…999000 V AC 50/60 Hz with external VT |
| Frequency measurement range | 45…65 Hz |
| [Us] rated supply voltage | 80...277 V AC 45...65 Hz +/- 10 %
100...277 V DC +/- 10 % |
| Measurement accuracy | Apparent power +/- 0.5 %
Active energy +/- 0.5 %
Reactive energy +/- 1 %
Active power +/- 0.5 %
Voltage +/- 0.5 %
Power factor +/- 0.01
Current +/- 0.5 %
Frequency +/- 0.05 % |
| Accuracy class | Class 1 active energy conforming to IEC 62053-21
Class 1 reactive energy conforming to IEC 62053-24
Class 5 harmonic distorsion (I THD & U THD) |
| Material | Polycarbonate |
Dimensions (mm)
(H x W x D) | 96x96x61.64mm |
| Cut-out dimensions | 92 x 92 mm |
| Net weight | 300 g |
