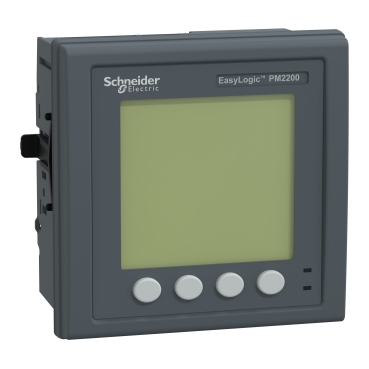

Specifications METSEPM2210 |
| Range of product | EasyLogic PM2200 |
| Country of Origin (Estimated) | India |
| Warranty | 12 months |
| CO/CQ | Yes (if) |
| Product name & Device short name | PM2210 |
| Product or component type | Power meter |
| Power quality analysis | Total harmonic distortion |
| Device application | Sub billing
Power monitoring |
| Type of measurement | Apparent power min/max, total
Active and reactive power min/max, total
Current min/max, avg
Voltage min/max, avg
Frequency min/max, avg
Total current harmonic distortion THD (I) per phase
Total voltage harmonic distortion THD (U) per phase
Power factor min/max, avg
Apparent energy total
Active and reactive energy total |
| Metering type | Voltage U, U21, U32, U13, V, V1, V2, V3
Unbalance current
Calculated neutral current
Apparent power S, S1, S2, S3
Peak demand currents
Current I, I1, I2, I3
Active, reactive, apparent energy (signed, four quadrant)
Active power P, P1, P2, P3
Reactive power Q, Q1, Q2, Q3
Peak demand power PM, QM, SM
Demand power P, Q, S |
| [Us] rated supply voltage | 35…480 V AC 50/60 Hz between phases
20…277 V AC 50/60 Hz between phase and neutral
480…999000 V AC 50/60 Hz with external VT |
| [In] rated current | 5 A
1 A |
| Display type and colour | Backlit LCD and Monochrome |
| Display resolution | 128 x 128 pixels |
| Communication port protocol | POP |
| POP parameter | Pulse: 20 ms (5...40 V DC, 20 mA max)1...9999000 pulse/ k_h (kWh, kVAh, kVARh) |
| Number of outputs | 1 pulse |
| Measurement current | 5…6000 mA |
| Measurement voltage | 35…480 V AC 50/60 Hz between phases
20…277 V AC 50/60 Hz between phase and neutral
480…999000 V AC 50/60 Hz with external VT |
| Frequency measurement range | 45…65 Hz |
| [Us] rated supply voltage | 44...277 V AC 45...65 Hz +/- 10 %
44...277 V DC +/- 10 % |
| Measurement accuracy | Apparent power +/- 1 %
Active energy +/- 1 %
Reactive energy +/- 1 %
Active power +/- 1 %
Voltage +/- 0.5 %
Power factor +/- 0.01
Current +/- 0.5 %
Frequency +/- 0.05 % |
| Accuracy class | Class 1 active energy conforming to IEC 62053-21
Class 1 reactive energy conforming to IEC 62053-24 |
| Material | Polycarbonate |
Dimensions (mm)
(H x W x D) | 96x96x61.64mm |
| Cut-out dimensions | 92 x 92 mm |
| Net weight | 300 g |
